Brackets - Mandrel

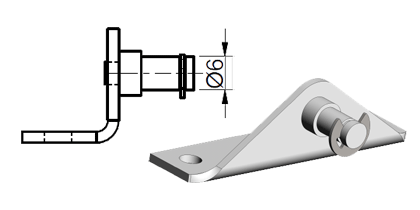

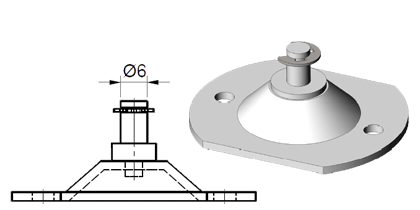

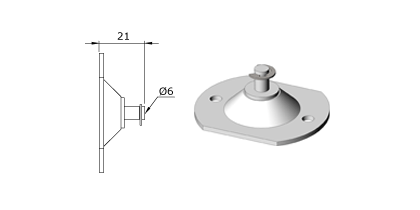

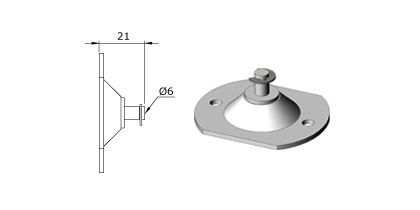

Technical drawing - Bracket with mandrel
Shop By
Shopping Options
M - Mandrel diameter (mm)
S - Gap (mm)
Max. force - Comp. gas spring (N)
Max. force - Extension gas springs (N)
Attached
ET - External thread (mm)
Material

Items 1-10 of 21

Page
per page
Set Descending Direction
Material Attached M
Mandrel diameter (mm)
S
Gap (mm)
Max. force
Comp. gas spring (N)
Max. force
Extension gas springs (N)
SKU Tech Drawing Compare Read More 3D CAD Stock View prices - Add to Cart
Galvanised Inside 4,00 4,00 100 100 EF-BR11Z EF-BR11Z -
Galvanised Outside 6,00 7,00 651 651 EF-BR18Z EF-BR18Z -
Galvanised Inside 6,00 7,00 651 651 EF-BR19Z EF-BR19Z -
Galvanised Outside 6,00 7,00 651 651 EF-BR22Z EF-BR22Z -
Galvanised Outside 6,00 7,00 651 651 EF-BR24Z EF-BR24Z -
Stainless steel 304 Outside 6,00 7,00 651 651 EF-BR18S EF-BR18S -
Stainless steel 304 Inside 6,00 7,00 651 651 EF-BR19S EF-BR19S -
Stainless steel 304 Outside 6,00 7,00 651 651 EF-BR22S EF-BR22S -
Stainless steel 304 Outside 6,00 7,00 651 651 EF-BR24S EF-BR24S -
Galvanised 6,00 10,00 651 651 EF-PA001Z EF-PA001Z -
  1. EF-BR11Z
    In stock: 206
    Material Galvanised
    Attached Inside
    M - Mandrel diameter (mm) 4,00
    S - Gap (mm) 4,00
    Max. force - Comp. gas spring (N) 100
    Max. force - Extension gas springs (N) 100
  2. EF-BR18Z
    In stock: 402
    Material Galvanised
    Attached Outside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  3. EF-BR19Z
    In stock: 959
    Material Galvanised
    Attached Inside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  4. EF-BR22Z
    In stock: 83
    Material Galvanised
    Attached Outside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  5. EF-BR24Z
    In stock: 85
    Material Galvanised
    Attached Outside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  6. EF-BR18S
    In stock: 291
    Material Stainless steel 304
    Attached Outside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  7. EF-BR19S
    In stock: 233
    Material Stainless steel 304
    Attached Inside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  8. EF-BR22S
    In stock: 158
    Material Stainless steel 304
    Attached Outside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  9. EF-BR24S
    In stock: 37
    Material Stainless steel 304
    Attached Outside
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 7,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651
  10. EF-PA001Z
    In stock: 398
    Material Galvanised
    Attached
    M - Mandrel diameter (mm) 6,00
    S - Gap (mm) 10,00
    Max. force - Comp. gas spring (N) 651
    Max. force - Extension gas springs (N) 651

Items 1-10 of 21

Page
per page
Set Descending Direction
Material

We have end-fittings in two different materials:

  • Stainless Steel 304
  • Electro galvanized

Not all end-fittings are available in both materials.
