Ball-joint

Technical drawing - Ball joint
Shop By
Shopping Options
A - Center length (mm)
Max. force - Comp. gas spring (N)
Max. force - Extension gas springs (N)
IT - Internal thread (mm)
ET - External thread (mm)
Material

Items 1-10 of 17

Page
per page
Set Descending Direction
Material IT
Internal thread (mm)
ET
External thread (mm)
A
Center length (mm)
Max. force
Comp. gas spring (N)
Max. force
Extension gas springs (N)
SKU Tech Drawing Compare Read More 3D CAD Stock View prices - Add to Cart
Galvanised 4,00 4,00 18,00 100 100 EF-BJ016Z EF-BJ016Z -
Plastic 6,00 5,00 18,00 400 0 EF-BJ002PZ EF-BJ002PZ -
Stainless steel 304 6,00 5,00 22,00 400 400 EF-BJ004S EF-BJ004S -
Galvanised 6,00 5,00 22,00 400 400 EF-BJ004Z EF-BJ004Z -
Galvanised 6,00 6,00 25,00 450 0 EF-AJ001Z EF-AJ001Z -
Plastic 6,00 8,00 18,00 500 0 EF-BJ014PN EF-BJ014PN -
Galvanised 6,00 8,00 18,00 650 650 EF-BJ012Z EF-BJ012Z -
Stainless steel 304 6,00 8,00 18,00 650 650 EF-BJ012S EF-BJ012S -
Galvanised 6,00 8,00 25,00 650 650 EF-BJ005Z EF-BJ005Z -
Stainless steel 304 6,00 8,00 25,00 650 650 EF-BJ005S EF-BJ005S -
  1. EF-BJ016Z
    In stock: 12
    Material Galvanised
    IT - Internal thread (mm) 4,00
    ET - External thread (mm) 4,00
    A - Center length (mm) 18,00
    Max. force - Comp. gas spring (N) 100
    Max. force - Extension gas springs (N) 100
  2. EF-BJ002PZ
    In stock: 341
    Material Plastic
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 5,00
    A - Center length (mm) 18,00
    Max. force - Comp. gas spring (N) 400
    Max. force - Extension gas springs (N) 0
  3. EF-BJ004S
    In stock: 1,381
    Material Stainless steel 304
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 5,00
    A - Center length (mm) 22,00
    Max. force - Comp. gas spring (N) 400
    Max. force - Extension gas springs (N) 400
  4. EF-BJ004Z
    In stock: 626
    Material Galvanised
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 5,00
    A - Center length (mm) 22,00
    Max. force - Comp. gas spring (N) 400
    Max. force - Extension gas springs (N) 400
  5. EF-AJ001Z
    In stock: 142
    Material Galvanised
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 6,00
    A - Center length (mm) 25,00
    Max. force - Comp. gas spring (N) 450
    Max. force - Extension gas springs (N) 0
  6. EF-BJ014PN
    In stock: 1,622
    Material Plastic
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 8,00
    A - Center length (mm) 18,00
    Max. force - Comp. gas spring (N) 500
    Max. force - Extension gas springs (N) 0

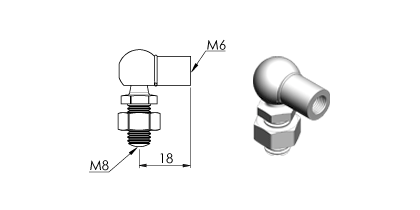

  7. EF-BJ012Z
    In stock: 154
    Material Galvanised
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 8,00
    A - Center length (mm) 18,00
    Max. force - Comp. gas spring (N) 650
    Max. force - Extension gas springs (N) 650
  8. EF-BJ012S
    In stock: 2,043
    Material Stainless steel 304
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 8,00
    A - Center length (mm) 18,00
    Max. force - Comp. gas spring (N) 650
    Max. force - Extension gas springs (N) 650
  9. EF-BJ005Z
    In stock: 2,586
    Material Galvanised
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 8,00
    A - Center length (mm) 25,00
    Max. force - Comp. gas spring (N) 650
    Max. force - Extension gas springs (N) 650

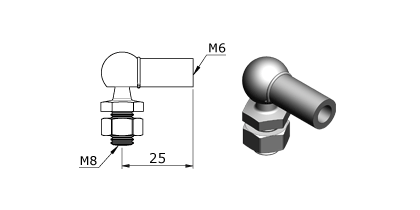

  10. EF-BJ005S
    In stock: 1,490
    Material Stainless steel 304
    IT - Internal thread (mm) 6,00
    ET - External thread (mm) 8,00
    A - Center length (mm) 25,00
    Max. force - Comp. gas spring (N) 650
    Max. force - Extension gas springs (N) 650

Items 1-10 of 17

Page
per page
Set Descending Direction
Material

We have end-fittings in three different materials:

  • Stainless Steel 304
  • Electro galvanized
  • Plastic

Not all end-fittings are available in all the different materials.
