Wavy spring washers

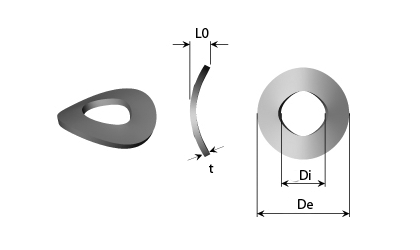

Technical drawing - Wavy spring washers
Wavy spring washers are used where axial clearance needs to be offset. This could be offsetting a small amount of clearance for ball bearings, flanges, washers, etc. Wavy spring washers are designed to have 2 waves.
Show more Show less

Shop By
Shopping Options
De - External diameter (mm)
Di - Internal diameter (mm)
h max - Maximum height (mm)
h min - Minimum height (mm)
s - Thickness (mm)

Items 1-10 of 17

Set Descending Direction
View prices - Add to Cart Material De
External diameter (mm)		 Di
Internal diameter (mm)		 h max
Maximum height (mm)		 h min
Minimum height (mm)		 s
Thickness (mm)		 SKU Stock Tech Drawing Read More 3D CAD
Spring steel 8.00 3.20 1.60 0.80 0.50 63000 63000
Spring steel 8.00 3.70 1.80 0.90 0.50 63010 63010
Spring steel 9.00 4.30 2.00 1.00 0.50 63020 63020
Spring steel 11.00 5.30 2.20 1.10 0.50 63030 63030
Spring steel 12.00 6.40 2.60 1.30 0.50 63040 63040
Spring steel 14.00 7.40 3.00 1.50 0.80 63050 63050
Spring steel 15.00 8.40 3.00 1.50 0.80 63060 63060
Spring steel 17.00 8.40 3.40 1.70 0.80 63070 63070
Spring steel 18.00 10.50 4.20 2.10 1.00 63080 63080
Spring steel 21.00 10.50 4.20 2.10 1.00 63090 63090
  1. 63000
    In stock: 2,000
    63000
    Material Spring steel
    De - External diameter (mm) 8.00
    Di - Internal diameter (mm) 3.20
    h max - Maximum height (mm) 1.60
    h min - Minimum height (mm) 0.80
    s - Thickness (mm) 0.50
  2. 63010
    In stock: 935
    63010
    Material Spring steel
    De - External diameter (mm) 8.00
    Di - Internal diameter (mm) 3.70
    h max - Maximum height (mm) 1.80
    h min - Minimum height (mm) 0.90
    s - Thickness (mm) 0.50
  3. 63020
    In stock: 1,232
    63020
    Material Spring steel
    De - External diameter (mm) 9.00
    Di - Internal diameter (mm) 4.30
    h max - Maximum height (mm) 2.00
    h min - Minimum height (mm) 1.00
    s - Thickness (mm) 0.50
  4. 63030
    In stock: 362
    63030
    Material Spring steel
    De - External diameter (mm) 11.00
    Di - Internal diameter (mm) 5.30
    h max - Maximum height (mm) 2.20
    h min - Minimum height (mm) 1.10
    s - Thickness (mm) 0.50
  5. 63040
    In stock: 508
    63040
    Material Spring steel
    De - External diameter (mm) 12.00
    Di - Internal diameter (mm) 6.40
    h max - Maximum height (mm) 2.60
    h min - Minimum height (mm) 1.30
    s - Thickness (mm) 0.50
  6. 63050
    In stock: 5,633
    63050
    Material Spring steel
    De - External diameter (mm) 14.00
    Di - Internal diameter (mm) 7.40
    h max - Maximum height (mm) 3.00
    h min - Minimum height (mm) 1.50
    s - Thickness (mm) 0.80
  7. 63060
    In stock: 1,061
    63060
    Material Spring steel
    De - External diameter (mm) 15.00
    Di - Internal diameter (mm) 8.40
    h max - Maximum height (mm) 3.00
    h min - Minimum height (mm) 1.50
    s - Thickness (mm) 0.80
  8. 63070
    In stock: 225
    63070
    Material Spring steel
    De - External diameter (mm) 17.00
    Di - Internal diameter (mm) 8.40
    h max - Maximum height (mm) 3.40
    h min - Minimum height (mm) 1.70
    s - Thickness (mm) 0.80
  9. 63080
    In stock: 238
    63080
    Material Spring steel
    De - External diameter (mm) 18.00
    Di - Internal diameter (mm) 10.50
    h max - Maximum height (mm) 4.20
    h min - Minimum height (mm) 2.10
    s - Thickness (mm) 1.00
  10. 63090
    In stock: 419
    63090
    Material Spring steel
    De - External diameter (mm) 21.00
    Di - Internal diameter (mm) 10.50
    h max - Maximum height (mm) 4.20
    h min - Minimum height (mm) 2.10
    s - Thickness (mm) 1.00
Page
per page
Material

DIN 17222 - C 75 - WERKSTOFF NO. 1.0605

Surface

Galvanised 9-12 my.
