Traction Gas Springs

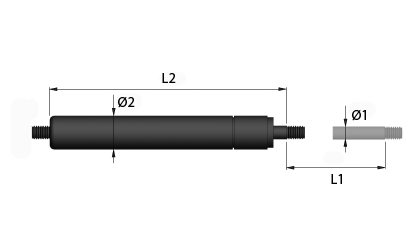

Technical drawing - TGF gas springs

Traction gas springs work in the opposite way from the conventional "compression" gas springs. The piston is in an unloaded state inside the cylinder, and when it is loaded and pulled out, the force will attempt to pull it back into the cylinder again.

The tube is painted black and the rod has received an anti-corrosive treatment called Nitrider.

We do not stock this series in stainless steel, but it can be obtained if necessary.

Shop By
Shopping Options
Ø1 - Piston Rod diameter (mm)
Ø2 - Tube diameter (mm)
L1 - Stroke (mm)
L2 - Unloaded length between thread (mm)
F - Force (N)
G - Thread (M)

Items 1-10 of 186

Page
per page
Set Descending Direction
Ø1
Piston Rod diameter (mm)
Ø2
Tube diameter (mm)
L1
Stroke (mm)
F
Force (N)
L2
Unloaded length between thread (mm)
G
Thread (M)
SKU Tech Drawing Compare Read More Add to Cart Stock 3D CAD
8,00 22,00 20,00 100,00 100,00 6,00 TGF-8-20-100 TGF-8-20-100 15
8,00 22,00 20,00 150,00 100,00 6,00 TGF-8-20-150 TGF-8-20-150 6
8,00 22,00 20,00 200,00 100,00 6,00 TGF-8-20-200 TGF-8-20-200 5
8,00 22,00 20,00 250,00 100,00 6,00 TGF-8-20-250 TGF-8-20-250 6
8,00 22,00 20,00 300,00 100,00 6,00 TGF-8-20-300 TGF-8-20-300 6
8,00 22,00 20,00 350,00 100,00 6,00 TGF-8-20-350 TGF-8-20-350 5
8,00 22,00 20,00 400,00 100,00 6,00 TGF-8-20-400 TGF-8-20-400 4
8,00 22,00 20,00 450,00 100,00 6,00 TGF-8-20-450 TGF-8-20-450 14
8,00 22,00 20,00 500,00 100,00 6,00 TGF-8-20-500 TGF-8-20-500 6
8,00 22,00 20,00 600,00 100,00 6,00 TGF-8-20-600 TGF-8-20-600 3
  1. TGF-8-20-100
    In stock: 15
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 100,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  2. TGF-8-20-150
    In stock: 6
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 150,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  3. TGF-8-20-200
    In stock: 5
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 200,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  4. TGF-8-20-250
    In stock: 6
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 250,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  5. TGF-8-20-300
    In stock: 6
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 300,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  6. TGF-8-20-350
    In stock: 5
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 350,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  7. TGF-8-20-400
    In stock: 4
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 400,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  8. TGF-8-20-450
    In stock: 14
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 450,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  9. TGF-8-20-500
    In stock: 6
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 500,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00
  10. TGF-8-20-600
    In stock: 3
    Ø1 - Piston Rod diameter (mm) 8,00
    Ø2 - Tube diameter (mm) 22,00
    L1 - Stroke (mm) 20,00
    F - Force (N) 600,00
    L2 - Unloaded length between thread (mm) 100,00
    G - Thread (M) 6,00

Items 1-10 of 186

Page
per page
Set Descending Direction
Material

Cylinder and piston rod: The tube is painted semi-matte black, and the piston rod has been given a plasma nitride treatment that makes the surface extremely hardwearing and provides optimal rust protection.
However, the treatment cannot replace a dedicated stainless steel gas spring.

Oil: The oil is a common lubrication oil, but is not approved for food use. We can supply gas springs for use with foodstuffs. Contact us if you require such a solution.

Gas: The gas is nitrogen gas.

Stainless steel version

We do not stock this series in stainless steel, but it can be obtained if necessary.

Fitting And Use

The Traction Gas Springs contain a special grease as a lubricant instead of oil. This kind of lubricant ensures that seals etc. stay lubricated during storage and when fitted at any angle.

We recommend fitting the Traction Gas Springs with its piston facing upwards.
