MW1375-0500-25S
Part delivery is possible
If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.
If you would like a quotation for other amounts, please contact us. [email protected]
Subject to goods being unsold. Stock levels are updated continuously round the clock.

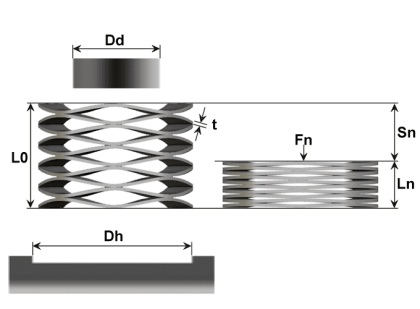

| Material | Stainless steel 17-7 PH |
|---|---|
| Dd - Max shaft (mm) | 26.20 |
| Dh - Min. hole (mm) | 34.90 |
| t - Thickness (mm) | 0.40 |
| L0 - Unloaded length (mm) | 12.70 |
| Ln - Max. loaded length (mm) | 6.10 |
| Sn - Maximum travel (mm) | 6.60 |
| Fn - Maximum load at Ln (N) | 111.20 |
| R - Spring constant (N/mm) | 16.80 |
