EF-E038Z

Part delivery is possible

If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.

If you would like a quotation for other amounts, please contact us. [email protected]

Subject to goods being unsold. Stock levels are updated continuously round the clock.

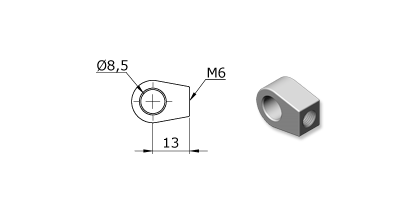

Technical drawing - Endfitting - Eye
More Information
Material Galvanized steel
IT - Internal thread (mm) 6.00
A - Center length (mm) 13.00
H - Hole Diameter (mm) 8.50
T - Eye Thickness (mm) 10.00
Max. force - Comp. gas spring (N) 650.00
Max. force - Extension gas springs (N) 650.00
