BF-10983

Part delivery is possible

If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.

If you would like a quotation for other amounts, please contact us. [email protected]

Subject to goods being unsold. Stock levels are updated continuously round the clock.

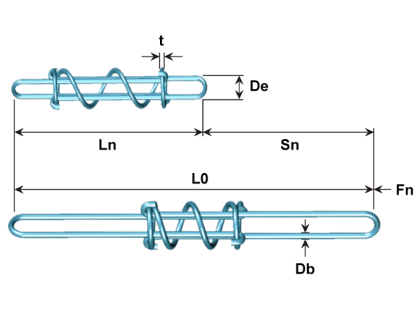

Technical drawing - Draw bar springs
More Information
Material Stainless steel 302
d - Wire diameter (mm) 1.60
De - External diameter (mm) 14.10
L0 - Unloaded length (mm) 80.00
Ln - Max. loaded length (mm) 114.00
Sn - Maximum travel (mm) 3.40
Fn - Maximum load at Ln (N) 117.00
R - Spring constant (N/mm) 3.45
db - Wire loops (mm) 1.60
