BE-6-20-100-T

Part delivery is possible

If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.

If you would like a quotation for other amounts, please contact us. [email protected]

Subject to goods being unsold. Stock levels are updated continuously round the clock.

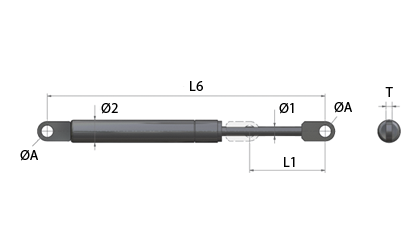

Technical drawing - Gas springs - Welded eyes - Nitrider
More Information
Material Black painted steel
Ø1 - Piston Rod diameter (mm) 6.00
Ø2 - Tube diameter (mm) 15.00
L1 - Stroke (mm) (+/- 2 mm) 20.00
L6 - Unloaded length mideye to mideye (mm) 106.00
F - Force (N) 100.00
K - Force ratio 1.30
T - Eye thickness (mm) 3.00
ØA - Hole (mm) 6.10
