industrial-springs.com
A420-029-037
Part delivery is possible
If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.
If you would like a quotation for other amounts, please contact us. [email protected]
Subject to goods being unsold. Stock levels are updated continuously round the clock.

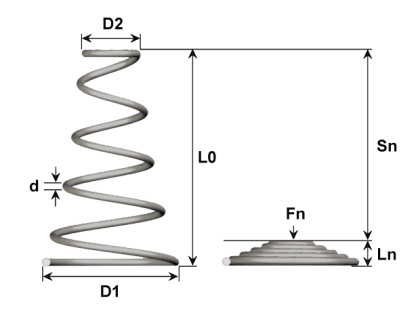

| Material | Stainless steel 302 |
|---|---|
| d - Wire diameter (mm) | 0.74 |
| D1 - External diameter large end (mm) | 10.67 |
| D2 - External diameter small end (mm) | 3.96 |
| L0 - Unloaded length (mm) | 9.53 |
| Ln - Max. loaded length (mm) | 1.48 |
| Sn - Maximum travel (mm) | 8.05 |
| Fn - Maximum load at Ln (N) | 18.82 |
| R - Spring constant (N/mm) | 2.34 |
| Nt - Coils in total (Pcs.) | 5.00 |
