ST51740
Part delivery is possible
If the desired amount is not shown as in stock, we can make a part delivery. We will contact you as soon as possible with the expected delivery date on the outstanding part of your order.
If you would like a quotation for other amounts, please contact us. [email protected]
Subject to goods being unsold. Stock levels are updated continuously round the clock.

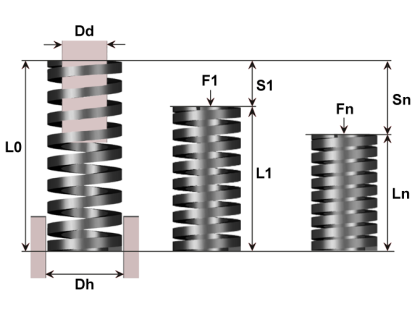

| Dh - Min. hole (mm) | 19.05 |
|---|---|
| Dd - Max shaft (mm) | 9.52 |
| L0 - Unloaded length (mm) | 114.30 |
| R - Spring constant (N/mm) | 11.20 |
| S1 - Travel at F1 (mm) | 28.58 |
| L1 - Length at F1 (mm) | 85.73 |
| F1 - Force in N at S1 (N) | 320.00 |
| Sn - Maximum travel (mm) | 53.72 |
| Ln - Max. loaded length (mm) | 60.58 |
| Fn - Maximum load at Ln (N) | 602.00 |
