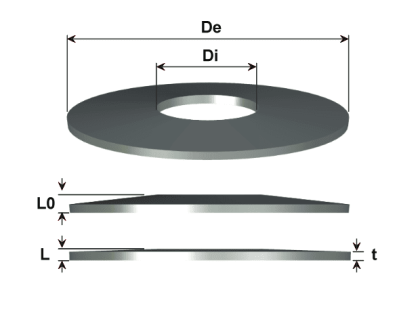

Technical drawing - Disc springs
More Information
Material Oiled spring steel
De - External diameter (mm) 8.00
Di - Internal diameter (mm) 3.20
t - Thickness (mm) 0.30
L0 - Unloaded length (mm) 0.55
L - Height in load F (mm) 0.36
F - Force (N) 105.00
s - Max travel (mm) 0.19
